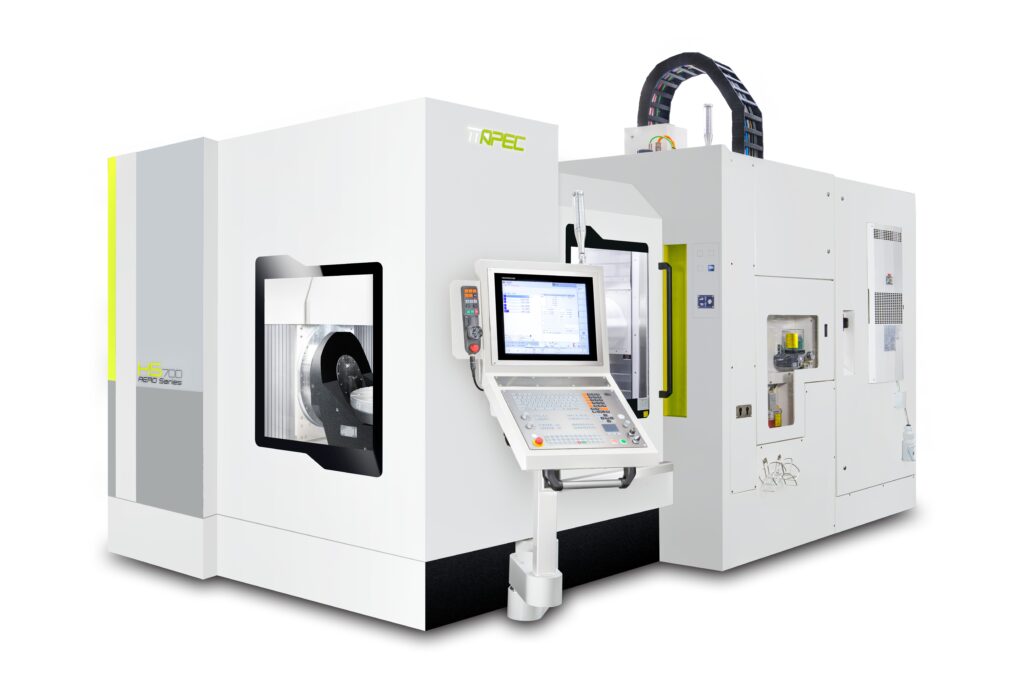

TT APEC HS700 – High Speed 5 Axis Built for Aerospace Production
The TT APEC HS700 is a high-speed horizontal 5-axis machining centre built for one thing… production. This isn’t a general-purpose machine, it’s designed specifically for aerospace-style machining where cycle time, chip control, and repeatability matter.
It’s the type of machine you put in when you’re running aluminium structures all day and need it to just keep going without chasing issues.
What the HS700 is Built For
The HS700 is designed around high-speed, multi-face machining with automation in mind.
Aerospace aluminium structures (ribs, spars, frames)
Thin-wall parts where stability is critical
High-volume production with pallet systems
Complex 5-axis work in one setup
It’s a horizontal machine with an inverted design, so chips fall away from the part instead of building up around it. That alone makes a massive difference on long-running jobs.
Key Specs (HS700)
Travels
X: 710 mm
Y: 910 mm
Z: 810 mm
Table & Capacity
Rotary table: Ø650 mm
Max workpiece: Ø700 mm
Table load: 350 kg
Rotary Axes
A-axis: -90° to +135°
C-axis: 360° continuous
Direct drive motors for backlash-free movement
Spindle Options
Up to 20,000–24,000 rpm
HSK63A or HSK100A options
Power range approx. 20–60 kW depending on spec
Torque up to ~143 Nm
Performance
Rapid traverse: 60 m/min
High acceleration for fast cycle times
Tooling
32 tools standard (up to 120+ options)
Max tool length: 400 mm
What Makes It Different
This is where the HS700 stands out.
Inverted machining design – chips fall away, no recutting, better finishes
Direct drive rotary axes – smooth, accurate 5-axis movement
T-shaped rigid structure – keeps the machine stable under high-speed cutting
Thermal control systems – holds accuracy over long production runs
Automation ready – pallet systems up to 18 stations available
It’s built to run continuously, not just hit numbers on a test piece.
Real World Advantage
The biggest win with the HS700 is throughput.
You load it up, let it run, and it keeps producing consistent parts without constant intervention. The pallet system means you can be setting up the next job while it’s still cutting.
For aerospace work, especially aluminium, this is exactly what you want. Fast, stable, and repeatable.
UK Support – King Machine Tool Services
At King Machine Tool Services, we’re the UK agent for TT APEC.
We don’t just sell these machines, we install them, service them, and keep them running properly.
UK-based engineers, not just sales
Installation and setup done right
Ongoing support and optimisation
Fast response when you need it
Final Word
The TT APEC HS700 is built for production environments that demand speed and consistency.
If you’re machining aerospace parts or high-volume aluminium work, this machine is designed for exactly that.
And with proper UK support behind it, you’re not just buying a machine, you’re putting in a solution that’s built to run.

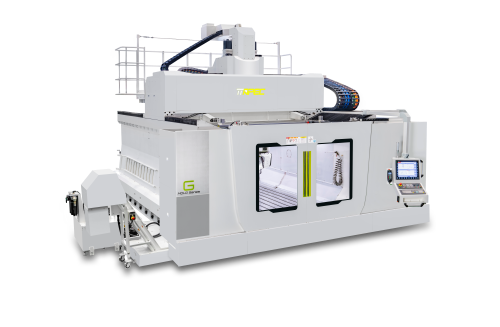

TT APEC G3020 – Large Format 5 Axis Gantry for Serious Work
The TT APEC G3020 is a proper large-format 5-axis gantry machine. This is the step up when you’re into big parts, aerospace structures, mould tools, and anything where size and accuracy both matter.
It’s not a small 5-axis trying to do everything. This is built for heavy, continuous machining on large components while still holding tight tolerances across the full travel.
What the G3020 is Built For
The G3020 is designed for large, complex parts in one setup.
Aerospace structures (ribs, spars, panels)
Large mould and die work
Automotive tooling and structural parts
Energy and heavy engineering components
It’s a full gantry design, so you’ve got stability across the whole bed, not just in one area. That’s key when you’re machining big parts.
Key Specs (G3020)
Travels
X: 3,000 mm
Y: 2,000 mm
Z: 1,000–1,200 mm
Table
Table size: 3,000 x 2,000 mm
Load capacity: ~8,000 kg/m²
Spindle
Up to 15,000 – 24,000 rpm
HSK63A or HSK100A options
Power up to ~45 kW
Torque up to ~143 Nm
5 Axis Head
A/B axis: ±125°
C axis: 360° continuous
Clamping torque: up to 4,000 Nm
Performance
Rapid traverse: 60 m/min (X/Y), 40 m/min (Z)
High acceleration with linear motor drives
Tooling
Tool magazine: 20–60 tools
Max tool length: 300 mm
Machine Weight
Roughly 35–65 tonnes depending on spec
What Makes It Different
This is where the G3020 stands out.
U-shaped gantry structure – keeps cutting forces balanced and stable
Linear motors on X/Y – fast, smooth, no backlash
Double ball screw Z-axis with cooling – controls thermal growth
Direct drive 2-axis head – high accuracy on complex surfaces
Built for size without losing precision
It’s designed to hold accuracy over a big working area, which is where cheaper machines fall apart.
Real World Advantage
The biggest advantage with the G3020 is capability.
You can put a large aerospace part on the table, machine it complete in one setup, and trust it to hold tolerance across the full length.
No moving parts between machines
No stacking errors
No chasing alignment
Just load it and cut.
UK Support – King Machine Tool Services
At King Machine Tool Services, we’re the UK agent for TT APEC.
We don’t just sell these machines, we install them, service them, and keep them running properly.
Proper UK engineering support
Installation done right
Ongoing servicing and calibration
Fast breakdown response
